FLOOR PLAN AND BUILDING FORM

Seven modules like the tangram allow people to play with this building. Each module of this building contian a certain function, and its space cheracters. By assemble seven modules, every time people can create a new building according to the functional needs and spatial needs. At same time the form of building also can be create, such as suare, rectangle and courtyard. With such a playable and creative building, designers who work in this design studio can be inspired. Furthermore more new extra modules can be added if new functions or more sapce is needed.





 Different building form

like the tangram use these seven modules, different building form can be created



Square form

Rectangle form

`

With a small courtyard

With a small courtyard

With a large courtyard

With a bridge

With a bridge

Modules assembling

Each of building modules offset in a little bit, keep a space for circuation. when put two pieces together, they become  corridors or  balcony.

This picture shows how two modueles are assembled

This picture shows how the railing on the balcony is assembled

Floor plan

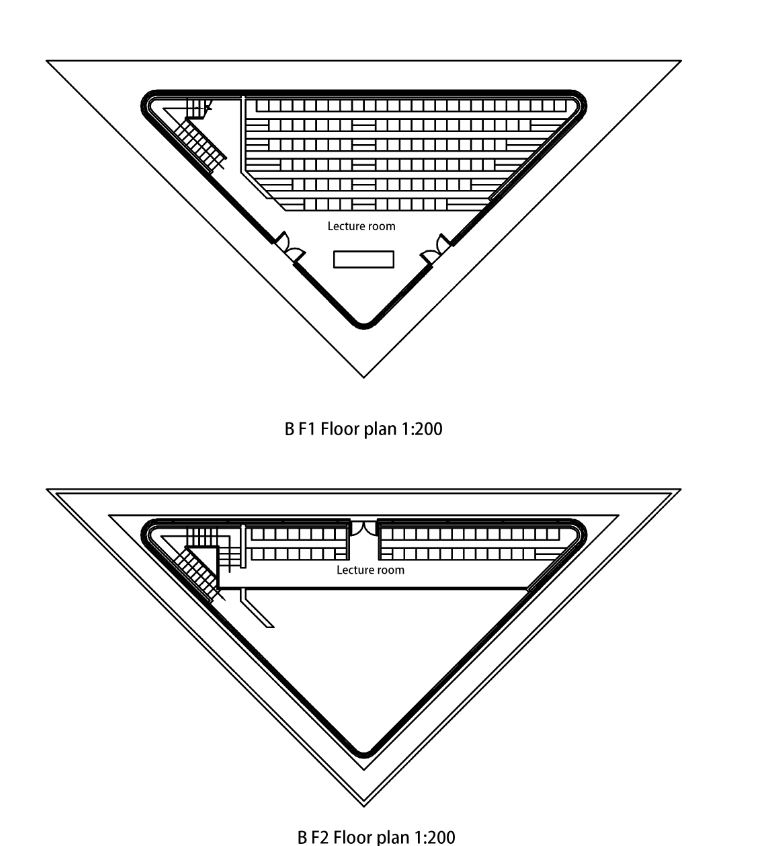

Blue module Floor plan

Black module Floor plan

Green module Floor plan

Orange module Floor plan

Red module Floor plan

Yellow module Floor plan

Purple module Floor plan
